PRODUCT SPECS

Home | Product Specs | Engineering Diagrams
ENGINEERING
DIAGRAMS
FIRE RATING
6 HOURS
WIND LOAD RATING
110+ MPH
SEISMIC RATING
EARTHQUAKE READY
NOISE REDUCTION RATING
6-12 dB
PSI RATING
8K+

STACKWALL ENGINEERING DIAGRAMS

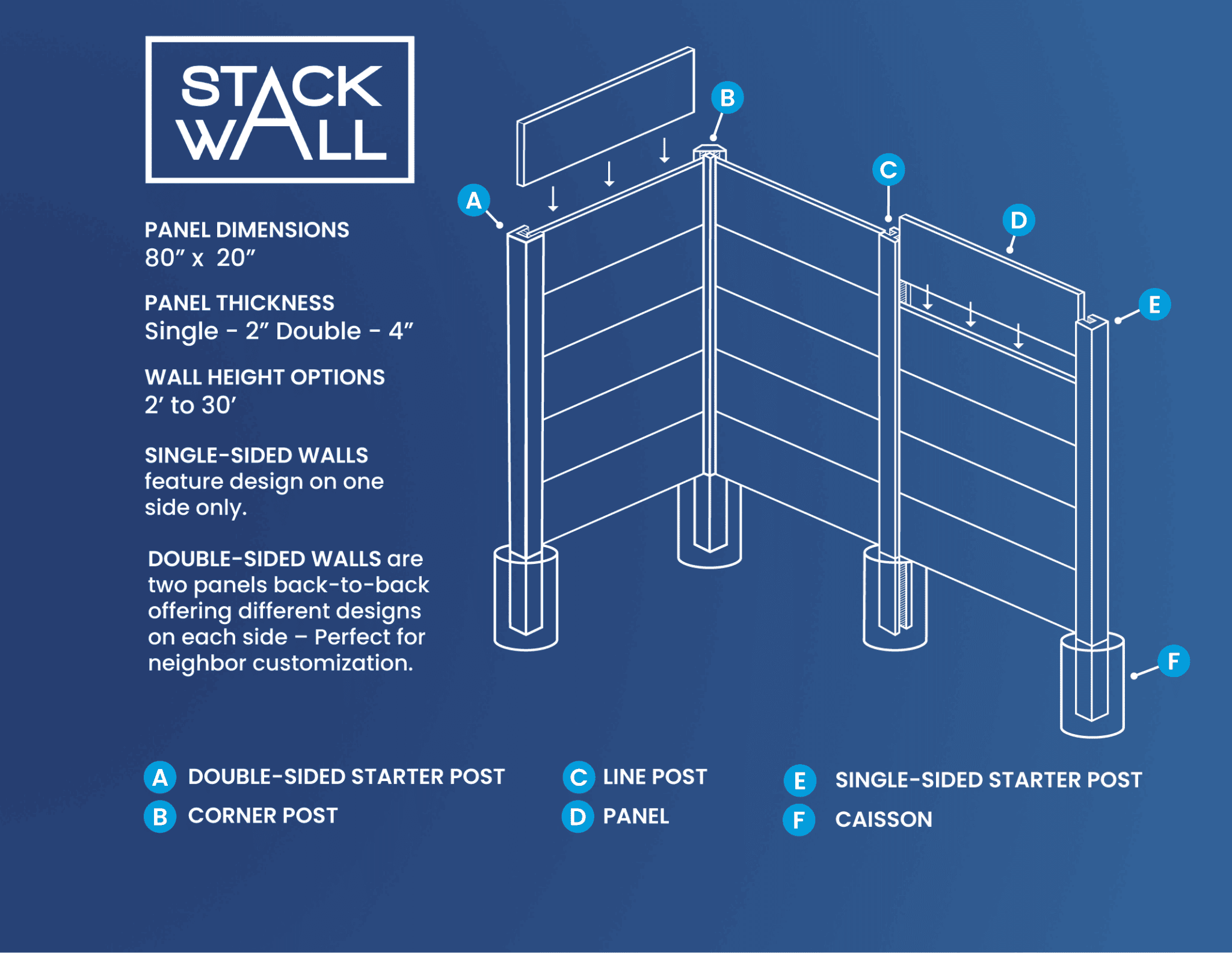

STACKWALL PANEL ASSEMBLY DIAGRAM 2048x1585

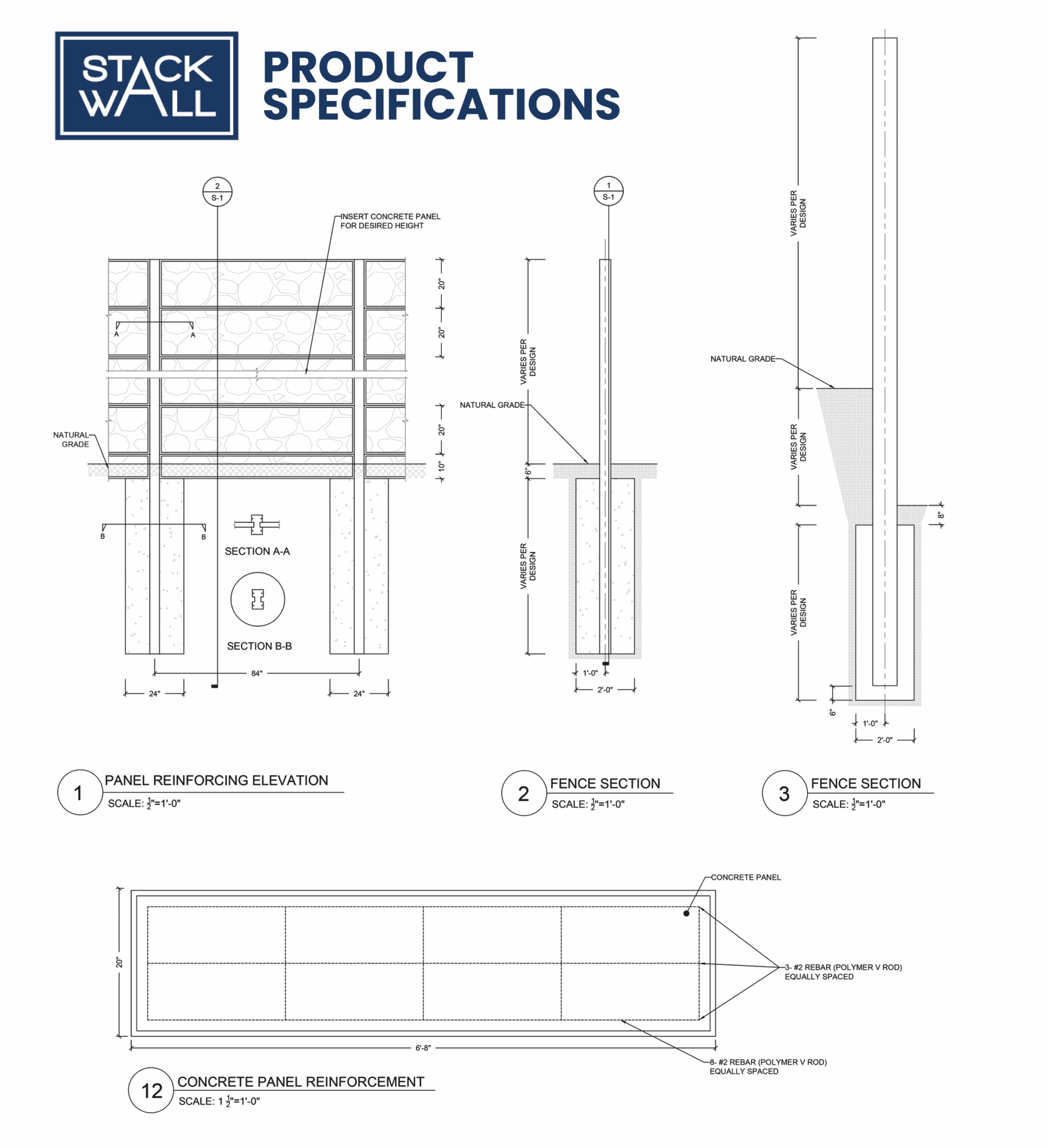

Product Specs 1 1871x2048

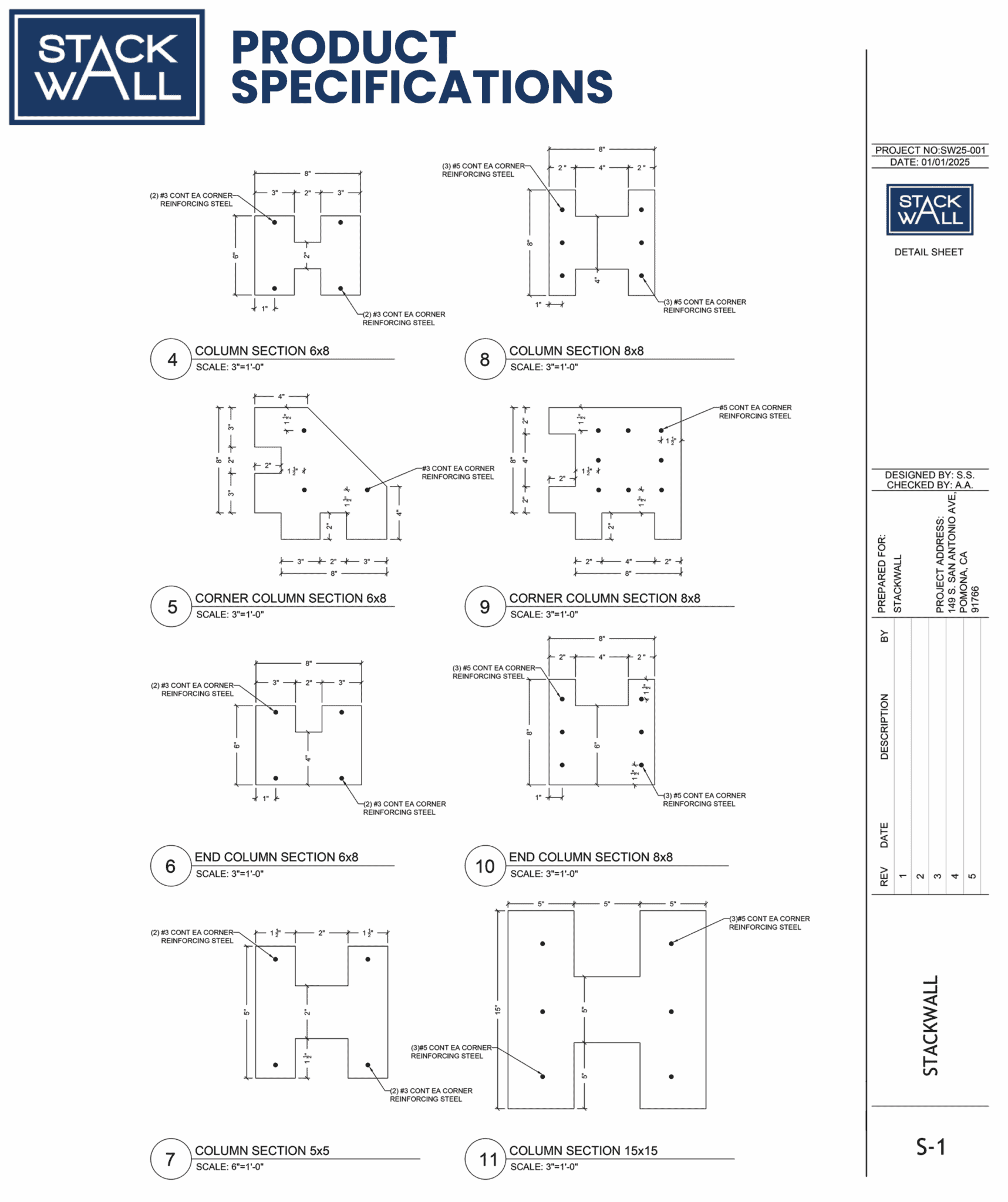

Product Specs 2 1717x2048

Download Diagrams

PRECAST CONCRETE VS OTHER FENCING MATERIALS

Side by Side Fencing Materials Comparison

Fencing Materials Comparison Chart 2048x1117

USEFUL TOOLS

PRE-CONSTRUCTION
CHECKLIST

Use this checklist to gather key info for an accurate quote and smooth install. For best results, measure your project with the StackWall Linear Feet Calculator.

CHECKLIST

LINEAR FEET
CALCULATOR

  1. Enter your address
  2. Trace your perimeter
  3. Get your total footage
  4. Save or screenshot

INSTALLATION
GUIDE

Step-by-step guide for installing StackWall fencing, covering site prep, post and panel installation, slope adjustments, finishing touches, and required tools.

GUIDE

PRECAST CONCRETE FENCING: WHAT MATTERS

Know What to Ask Before You Buy

FIRE RESISTANCE RATING

WHY IT MATTERS:
Precast concrete is naturally noncombustible & has excellent fire resistance — usually with a fire rating of 2—4 hours, depending on thickness & mix design.

WHAT TO CHECK >>

Ask for the fire rating certification or test data from the manufacturer. Make sure the panel thickness & design meet local building/fire codes for wildfire-prone areas.

STRUCTURAL STRENGTH & DURABILITY

WHY IT MATTERS:
You want the fence to stay standing under both normal conditions & extreme events (like fire + wind combined).

WHAT TO CHECK >>

Minimum compressive strength (usually 5,000—8,000 psi for durable precast). Reinforcement (rebar, steel mesh) inside the panels. Quality of panel connections & footings.

WEATHER, SEISMIC, & WIND RESISTANCE

WHY IT MATTERS:
A fire-resistant fence isn't useful if it can't handle earthquakes, freeze-thaw cycles, or strong winds.

WHAT TO CHECK >>

Wind load rating — especially in high-wind regions. Seismic design (important in
places like California). Surface treatment or sealers to resist water damage.

INSTALLATION & MAINTENANCE

WHY IT MATTERS:
Precast concrete fencing installation can be larger & more complex than expected, so it's important to plan carefully.

WHAT TO CHECK >>

Does the site allow equipment access for installation? Is the ground properly
prepared for deep, stable footings? What maintenance is needed?

COST & AESTHETICS

WHY IT MATTERS:
Precast may have a higher initial cost, but it delivers lasting value with unmatched durability, safety, low maintenance, & endless design options to match any aesthetic.

WHAT TO CHECK >>

Total installed cost vs. block, wood, vinyl, or metal fences. Available textures, colors, & finishes to match the home & landscape.

LOCAL REGULATIONS & HOA RULES

WHY IT MATTERS:
Some neighborhoods have height limits, appearance guidelines, or restrictions.

WHAT TO CHECK >>

Local codes & HOA rules may limit wall height, placement, & materials. Permits, setbacks, & utility access often apply. Always check zoning, drainage, & design requirements before installation.

STACKWALL FAQ

PRODUCT OPTIONS & CUSTOMIZATIONS

What styles and colors are available?

StackWall offers a variety of styles—Brick, Stone, Wood, Modern, Picket, & Elaborate. Color options are available through integral color mixed into concrete, staining or post-installation painting. Call to confirm color availability.

Can I mix and match panels designs?

Yes. Most StackWall designs are mix-and-match compatible for a fully customizable look.

Are StackWall panels customizable?

StackWall panels come in fixed sizes but can be cut to fit on-site. Choose from 100+ designs, with custom patterns or sizes available for an additional cost.

What dimensions are the panels?

Standard panels are approximately 80" wide x 20" tall. Fence heights range from 2–10 ft (residential) and up to 30 ft (commercial).

Can each side of the fence have a different design?

Yes. Double-sided designs (two panels back-to-back) allow each neighbor to choose their own style.

Do you offer other precast products?

Yes. We also manufacture wall caps, benches, fountains, pillars, & garden décor. StackWall can also create custom gates & ironwork.

COST, ESTIMATES & ORDERING

Are in-home estimates free?

Yes, in-home estimates are free in Southern California. Weekend appointments are available. For other areas, request an online quote.

Is there a minimum fence length?

No minimum order is required. We accommodate fences of any size.

Does fence height affect cost?

Yes. Taller fences (over 6 feet) require more materials and installation time, which increases costs.

What is the payment schedule?

A 10% deposit is due upon placing order.

What’s the typical manufacturing lead time?

Lead time depends on order size and our current production queue. Timelines are reviewed during the quoting process.

DURABILITY & MAINTENANCE

Are StackWall fences weather- and pest-resistant?

Yes. Our concrete walls resist termites, endure all climates, and help keep pets in and predators out. Optional coyote rollers can be added

What maintenance is required?

Minimal maintenance—just an occasional rinse. Rare efflorescence discoloration is easily cleaned with an acid wash.

Do StackWall fences reduce noise?

Yes. They can reduce noise from busy streets or freeways by up to 12 dB.

DELIVERY & ADD-ONS

Do you offer delivery outside Southern California?

Yes. StackWall ships nationwide.

How is the product shipped and unloaded?

We deliver via flatbed truck and typically handle offloading. A forklift may be required for some drop locations.

Do you offer gates or other integrated features?

Yes. Options include iron gates, smart walls, garden walls, mailboxes, and more.

GETTING STARTED

Can I install StackWall myself?

Yes. Installation is DIY-friendly with basic tools and help. A free installation guide is included with purchase.

What equipment is required?

No heavy machinery needed—just standard tools for digging and panel placement. When access is available equipment is encouraged for faster installation.

How deep should the post holes be?

32” minimum for shorter walls, & we recommend a project consultation with our Stackwall staff to confirm site location conditions and project specs.

SITE & INSTALLATION SERVICES

Will StackWall remove old fencing or obstacles?

Yes. Our team can clear obstructions along the fence line as part of installation services.

How long does installation take?

Time varies depending on site prep needs like demolition, grading, or debris removal as well as soil conditions and access.

CODES & PERMITS

Do I need a permit?

Generally, yes. Most cities require permits to install fences around residential properties and we help guide clients through necessary steps to obtain permit. City restrictions vary.

Are there restrictions on fence height?

Most areas cap fence height at 6' for emergency access. Taller walls typically require custom approval or commercial permitting. City height restrictions vary.

Where is StackWall located?

StackWall manufacturing site is headquartered in Pomona, CA and we service all Southern California. We also ship nationwide and have a vetted listed of nationwide approved installers.

Do you offer financing?

Yes, we offer financing through Hearth Financial.

Are you open on weekends?

Our office is open Monday–Friday, 8 AM–5 PM. Saturday visits are by appointment only.

Do you sell your molds?

No. We only sell finished precast concrete products.

Why choose precast concrete?

Precast concrete ensures consistent quality and allows us to produce identical, durable fence panels with design flexibility.

Do your fences come with a warranty?

Stackwall products come with a 10-year product guarantee and a 1-year installation warranty.

What is your return or cancellation policy?
Who do I contact for post-installation issues or repairs?

Who do I contact for post-installation issues or repairs?

SW BB 2048x1365

See the quality for yourself — order a StackWall sample box to inspect our materials, colors, & textures up close. It's the best way to ensure the product meets your expectations before you commit.

Product Sample Kits
